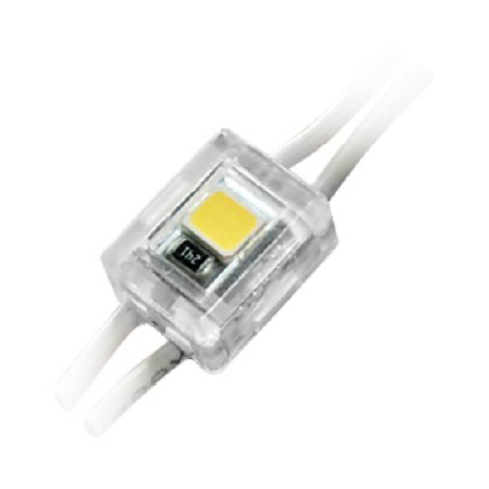

Micro 0,13W 21lm
TECHNICAL SPECIFICATIONS
LED type2835Input12V DCColor temperature3000 K, 4000 K, 6500 KBeam angle120°Protection levelIP 67Center-to-center distance28 mmWorking temperature-30ºC + 50ºCAvailable colorsWhiteLight output21 lmPower0,13 W-
TECHNICAL INFORMATION LIGHT DISTRIBUTION GRAPH
LED type 2835 Input 12V DC Color temperature 3000/4000/6500 K Beam angle 165º Protection level IP 67 Center-to-center distance 28 mm Working temperature -30ºC + 50ºC Available colors White Power 0,13 W Light output 21 lm
PRODUCT DIMENSIONS
PACKAGING CONNECTION DIAGRAM
PACKING TIPE CHAIN PACKAGE BOX Quantity 100 pcs 500 pcs 30000 pcs Weight 0,06 kg 0,28 kg 16,8 kg
